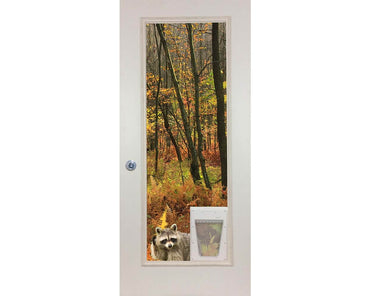

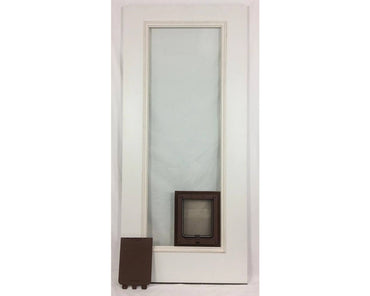

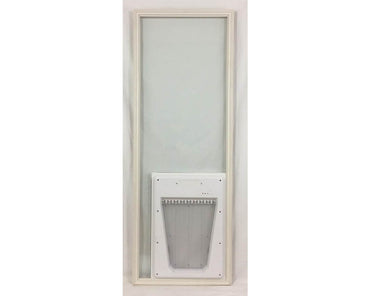

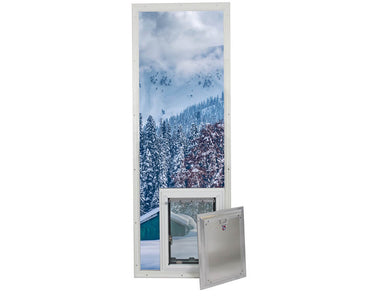

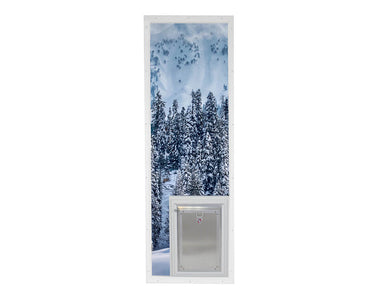

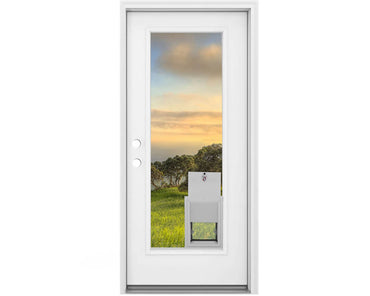

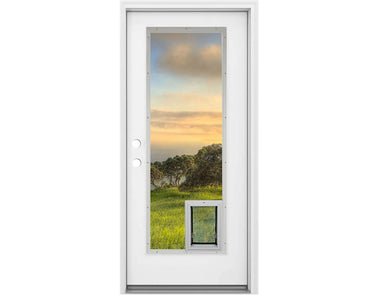

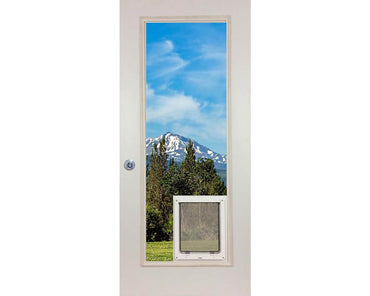

Security Boss MaxSeal French Door Glass Panel with Pet Door
The French Door Glass panel Insert is a do-it-yourself pet door solution that is simple to install, reversible if necessary in the future, and a very cost-effective option when compared to in-glass pet door products. These glass panel inserts are designed to work with french panel doors that have a plastic frame to hold the door's glass in place. All Security Boss products are custom-made to order.
The MaxSeal pet door is available in dual or single-flap versions. The dual flap model is recommended for customers seeking an ultimate weather barrier for their homes. Single flap models are commonly used in scenarios where an insulating barrier is not required.
First, determine if your glass is compatible by looking for two characteristics. First, look on the interior of your door; the frame around the glass should have a higher profile than the general surface of the door. Second, there will also be screws around the plastic frame that hold the glass panel.
If your door meets the above characteristics, use either method below to determine the size of your glass insert panel:
1.) Measuring by the Frame: Measure outside to outside of the small frame trim around your glass, and select the size below that fits
- Medium: 21.75"W x 65.75"H
- Large: 23.75"W x 65.75"H
2.) Measuring the actual glass Remove the trim around your glass insert and measure the actual glass pane; select the size that matches your glass.
- Medium: 20"W x 64"H
- Large: 22"W x 64"H
Glass Size Chart
|Size||Outside Trim Size||Glass Panel Size|
|Medium Glass||21.75"W x 65.75"H||20"W x 64"H|
|Large Glass||23.75"W x 65.75"H||22"W x 64"H|
Note: These glass inserts will not fit every french glass panel door. Only those that have glass that falls into the provided ranges and is held in place by the described plastic frame. If you measure incorrectly there are fees and shipping costs to return or exchange.
Pet Door Size Chart
Glass Panel Size
(Single Flap / Double Flap)
||6"x 7 1/2"||21.75"W x 65.75"H / 23.75"W x 65.75"H|
||7"x 9"||21.75"W x 65.75"H / 23.75"W x 65.75"H|
||9" x 12"||21.75"W x 65.75"H / 23.75"W x 65.75"H|
||11" x 16"||21.75"W x 65.75"H / 23.75"W x 65.75"H|
||11" x 20"||21.75"W x 65.75"H / 23.75"W x 65.75"H|
||11" x 25"||21.75"W x 65.75"H / 23.75"W x 65.75"H|
||12" x 24"||21.75"W x 65.75"H / 23.75"W x 65.75"H|
||15" x 20"||21.75"W x 65.75"H / 23.75"W x 65.75"H|
||15" x 24"||21.75"W x 65.75"H / 23.75"W x 65.75"H|
1-Year Manufacturer Warranty
For a period of one year from the date of purchase, any defective product or part may be sent, freight prepaid, to Security Boss® Manufacturing LLC for replacement or repair. Proof of purchase date must accompany any returned item. Manufacturer's liability on any claim shall not exceed the cost of the product. See complete warranty details here.
Security Boss Doors ship from Wisconsin via FedEx Ground
- Items normally ship in 1-3 business days from date of order, however custom or larger orders can take longer
- Use the map below to estimate shipping transit time to your location
We do our best to ship FAST and make it easy for you. At the top of this page, we have noted how long it normally takes to process and ship your order. You can then use the map above to estimate delivery times. We will send you an email confirmation with the tracking number as soon as your order ships
Please see our Shipping Policy for full details.
4-Sided Exterior Professional Doors are all made to the customer's specifications, therefore they are non-returnable, non-refundable.
Please see our Return Policy for full details.
