Security Boss Kennel Clad Premium Insulated Guillotine Kennel Door

$364.99 $390.98

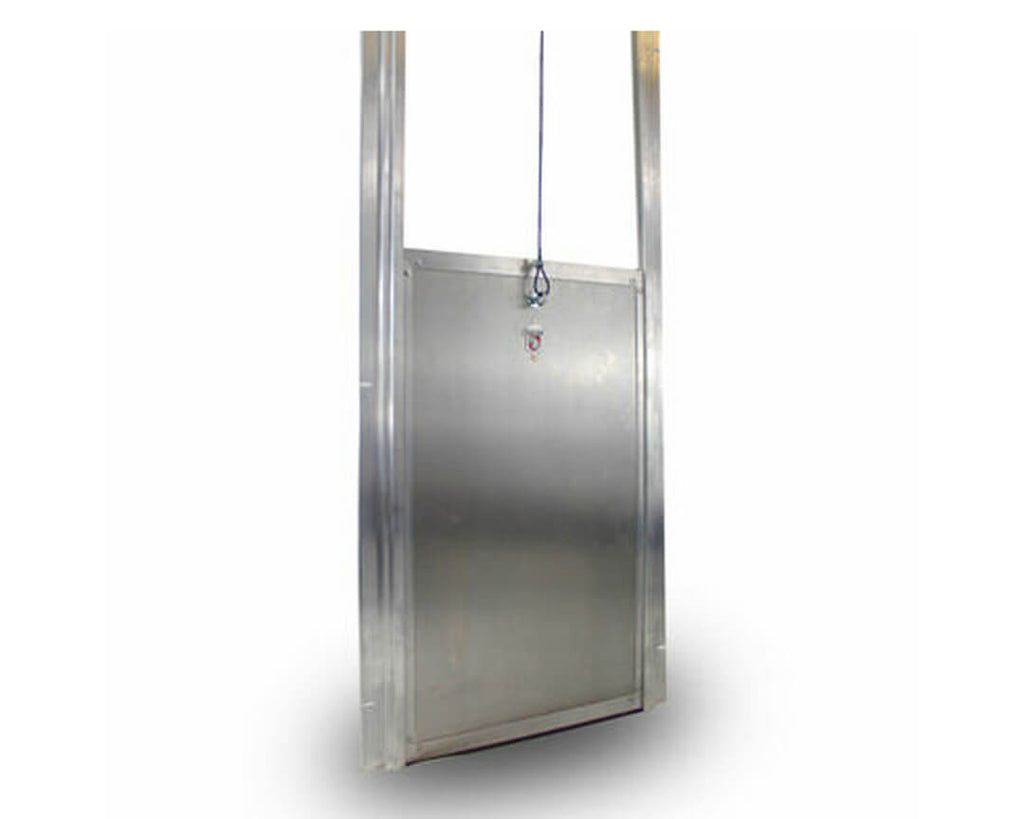

Security Boss Kennel Clad Premium Insulated Guillotine Kennel Door

Built for Commerical Kennels, with Maximum Insulation

The Kennel Clad Premium Insulated Guillotine Kennel Doors are built to withstand abuse while providing the best insulation. The guillotine door features a 1" dense foam insulating core clad on both sides with 18 gauge aluminum sheets. The perimeter of the doors is framed with a reinforcing custom C-Channel that allows customers who have most previous kennel door versions to upgrade without new rails. All Security Boss products are hand-built to order.

Along the top of each guillotine door there is an offset fin/brush weather seal that covers the gap between the closed guillotine door and the wall, saving you on passive energy loss. The hidden floor seal is designed to make positive floor contact to eliminate gaps when the door is closed. The placement of this floor seal is hidden from destructive dogs to minimize any damage to the doors. Replacements are available and are inexpensive. The Kennel Clad Insulated also uses the strongest side rails in the industry. This means no worries about warping or problems with your door gliding reliably when opening and closing. Not only will the insulating qualities of the Kennel Clad door provide for dramatic overall kennel energy savings, the rugged design will last for years. These doors will quite possibly be the last doors you will need to purchase.


  • Aluminum frame, built for commercial use
  • Available in 3 sizes
  • 1" foam core 18ga aluminum side for MAX insulation
  • Heavy-duty rail
  • Perimeter famed to increase durability and discourage bitting
  • All mounting hardware included
  • 1-year limited manufacturer warranty
  • Made in the USA

Size Chart

Size Regular Large Extra Large
Max Wall Opening 12"W x 29"H 17"W x 29"H 17"W x 34"H
Rail Height 69" 69" 69"
Bite Guard Optional Optional Optional

 Security Boss Kennel Door Bite Guard

Included Hardware

  • (2) - Screw in hook-pulley assemblies
  • (6) - Tapcon screws and mollies (for wood, block or concrete walls)
  • (2) - Cable clamps
  • 15 feet high strength 7x7 stainless steel aircraft cable coated in durable black PVC (480lb. test)
  • (1) - "S" hook

Security Boss Kennel door hardward kit

Model Comparison

Model Insulated
Rail Type Why Purchase
Kennel Clad Auto Lock Yes 1" foam core
18 ga. alum. sides
Heavy Duty Maximum Insulation
Facility Security, Rugged Design
Long Life
Kennel Clad Premium Insulated Yes 1" foam core
18 ga. alum. sides
Heavy Duty Maximum Insulation
Rugged Design, Long Life
Kennel Clad Insulated Yes HDPE air cell core
18 ga. alum. sides
Heavy Duty Superior Insulation
Rugged Design, Long Life
Classic Guillotine No 1/4" HDPE
reinforced alum. edges
Heavy Duty Economical price, Rugged Design, Long Life,
translucent - allows light in

1-Year Manufacturer Warranty

For a period of one year from the date of purchase, any defective product or part may be sent, freight prepaid, to Security Boss® Manufacturing LLC for replacement or repair. Proof of purchase date must accompany any returned item. Manufacturer's liability on any claim shall not exceed the cost of the product.  See complete warranty details here.

Security Boss Kennel Clad Insulated Guillotine Kennel Door Specifications

Security Boss Kennel Clad Insulated Guillotine Kennel Door technical specifications
