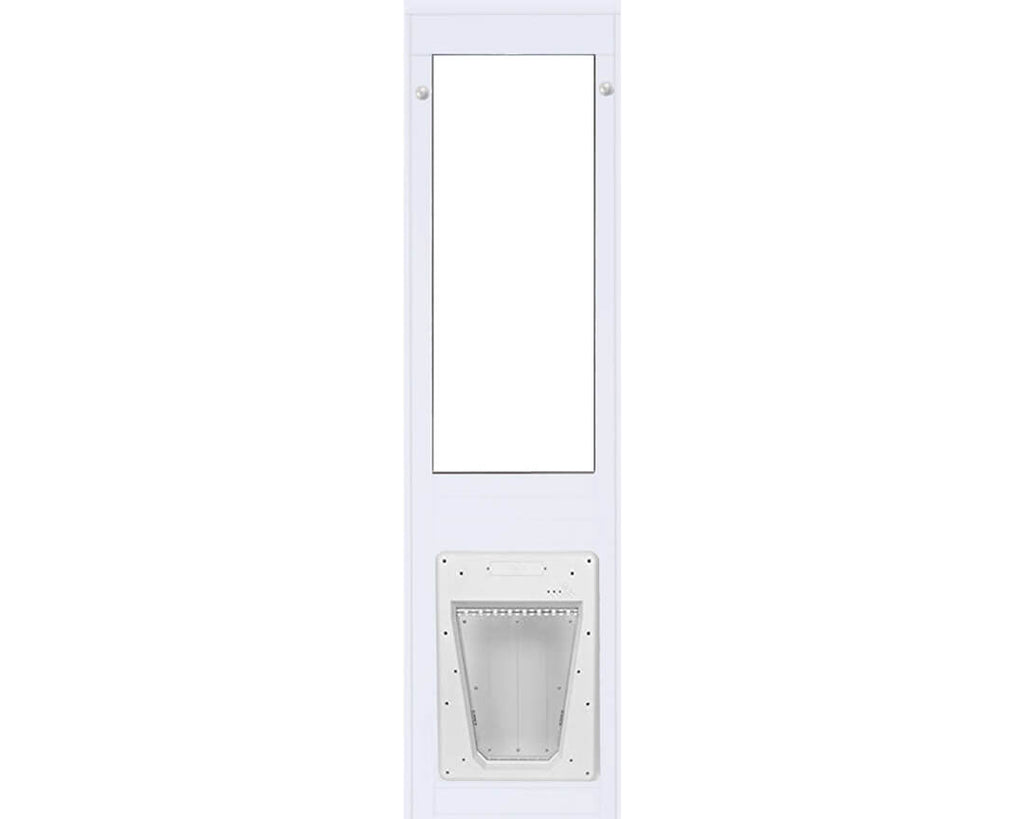

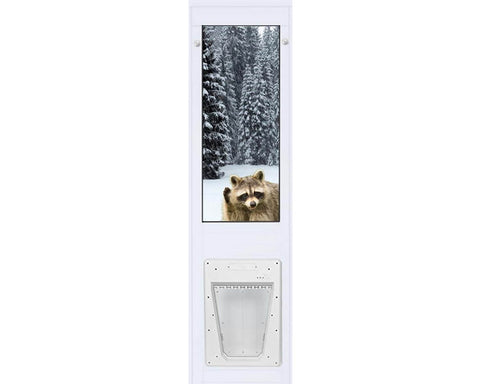

Security Boss Dual Pane Electronic Patio Pet Door
The Electronic Patio Pet Door is now available as an option for sliding glass doors from Security Boss Manufacturing LLC. This electronic door is ideal for customers who want to restrict their dog's access while also preventing other animals from using the door. This pet door is ideal for people who have a dog who can go outside but want to keep their cat inside. Only pets with a collar tag will be able to open this door. The unit can be programmed to work with up to five dogs.
Pay close attention to the rise options when ordering this patio pet door. You should measure your dog to the shoulders and choose an opening that is elevated enough to clear the shoulders while remaining easy for them to step through. It is not recommended to be used with cats as the collar tag is too large for most cats.
Note: Please make sure you measure correctly. Once installed, your patio opening will be reduced by the width of the door installed
Height Range Adjustment Chart:
See below the height range that corresponds with your Slider opening height
width x height
6 5/8" x 8"
| 77 1/4"
13 1/16" x 15 3/4"
| 77 1/4"
- 2" Rise measures 3 3/4" off bottom unit
- 4" Rise measures 5 3/4" off bottom of unit
- 6" Rise measures 7 3/4" off bottom of unit
- 8" Rise measures 9 3/4" off bottom of unit
1-Year Manufacturer Warranty
For a period of one year from the date of purchase, any defective product or part may be sent, freight prepaid, to Security Boss® Manufacturing LLC for replacement or repair. Proof of purchase date must accompany any returned item. Manufacturer's liability on any claim shall not exceed the cost of the product. See complete warranty details here.
Different ways to Install the Patio Pet Door:
The Security Boss Patio Pet Door can be mounted on the stationary side of the patio door. Many patio doors have stoppers that normally prevent the stationary panel from moving. If these stoppers can be removed, the stationary panel can be moved to accommodate the patio panel.
Note: This technique will not work on patio doors where the stationary panel is molded into the frame.
Use of Extensions Ranges:
Security Boss makes 4 different height ranges of patio pet doors. You can add 2-inch extensions to the top of all insert heights to extend their reach or adjustment range. These extensions snap into the top of your insert and fit tightly. No screws or hardware are required. It is possible to add more than two (2) extensions on the Security Boss Inserts. The snap-in lock feature of the extensions allows for a stable firm unit regardless of the number of extensions added. This is a great benefit to those who might move to a home with a taller sliding door system.
Adjustable Height Range:
The top section of the Security Boss Patio Pet Door floats on two tension rods that compress or expand to obtain the best possible fit in the patio door frame. The top is fit into the upper patio slider track and the bottom rests on the bottom slider track. Once in place, there are two thumb bolts that lock the top section into place to prevent the Patio Pet door from being removed from the outside.
Additional Product Info:
How Does my sliding door lock?
We strongly suggest bracing the door with a stick or an adjustable brace bar; as this immobilizes your slider and is the most effective way to secure your sliding door. We also offer several locking devices for purchase if your situation requires it.
Measuring for the Patio Door:
To determine which height range will work with your slider, open the slider and measure from the very bottom inside track to the very top inside track. As you look down on the groove that the slider follows on the floor, you may see a thin rail. You will want to measure down past that rail, from the deepest part of the channel on the floor to the very top inside channel above.
Will These Patio Pet doors fit all Sliding Doors?
As you look at the track on the floor your slider follows; you most often will see a "rail". If this "rail" is narrower than 5/16" (as you look down on it), then the Security Boss Patio Pet Doors should fit your slider.
What is the Rise?
This is the distance from the bottom of the patio insert to the bottom edge of the pet door frame. The Rise elevates the pet opening. For example, a 2" rise will be the same as setting the pet door itself on a 2" block. There are several different rise options available (2", 4", 6", and 8" inches) to accommodate different pets. Selecting the rise along with the properly sized pet opening should result in the opening being higher than the shoulders of your pet to prevent the flap from pinching and also result in an easy step-over height that they can use even as they age. As a rule of thumb, a pet opening should be 1.5 - 2" higher than your tallest pet's shoulders.
Included Weather stripping:
Every Security Boss Patio Insert features a replaceable bulb seal that lines both sides of the insert. This bulb seal provides a superior weather seal between the insert and the wall and sliding door. This weather seal can also be replaced if needed very easily by sliding the weatherstripping into the t-slot groove on your patio pet door.
The weather seal is a 3" wide vinyl weather stripping section that attaches to the back side of your sliding door. When an insert is installed, your sliding door breaks the seal between the slider and the fixed panel. This weather stripping will seal out any drafts.
View of Top Section / Spec Info
The top spring-loaded adjusting section of all Security Boss Patio Pet Doors appears as an "H" piece when viewed from the side. The overall width of this piece is 11/16" (Will fit into almost any sliding glass door track).
The spring-loaded adjustment provides a 3.25" range for proper fitting into your opening. Most top tracks in sliding glass doors do not have any center rails, however, if you do have this feature then the Insert can straddle any rail at the top 9/16" wide or narrower.
The spring-loaded top is secured with 2 thumbscrew locks, accessible from the interior only so that someone from the exterior of the house would not be able to compress or remove the unit.
View of Bottom Section / Spec Info
The bottom section of all Security Boss Patio Pet Doors has an overall width of 5/16". A semi-circle, "C" channel is centered and runs the length of the bottom. This "C" channel is designed to straddle the center rail in the channel on the floor that your sliding glass door follows.
By straddling this center rail, the Patio Pet Door will remain centered on the frame of your sliding door when closed to this unit.
Note: If the center rail in the channel on the floor is wider than 5/16", then this patio Insert will not be able to straddle it and as a result may not fit properly in your opening
