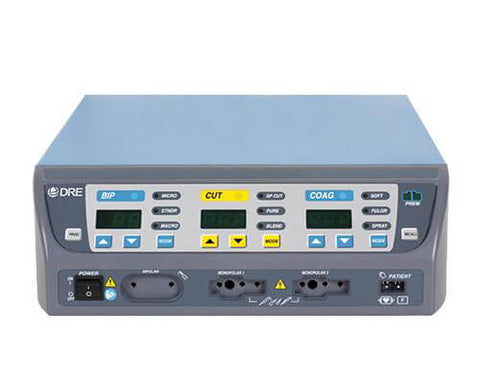

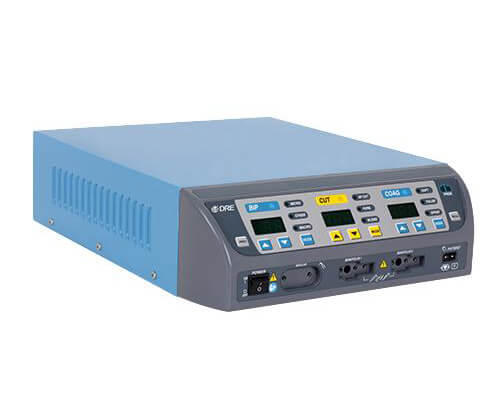

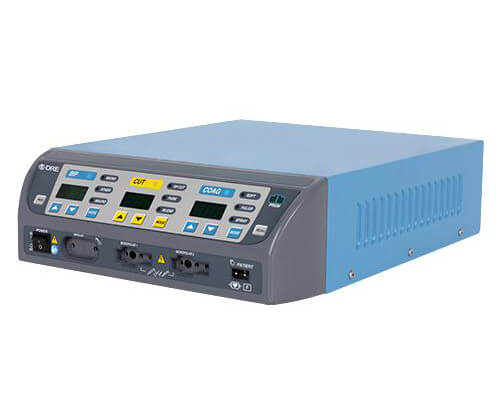

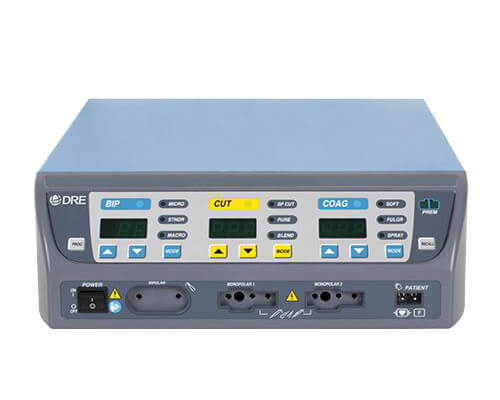

Avante Citadel 300 Veterinary Electrosurgical Unit (ESU)


$4,320.00 $4,968.00

Avante Citadel 300 Veterinary Electrosurgical Unit (ESU)

For modern veterinary practices, the Avante Citadel 300 electrosurgical generator is perfect. The Citadel 300 can easily adapt to a variety of surgical environments thanks to its 30 settings. Through the use of special features like audio feedback alerts and automatic tissue sensing technology, clinicians can use bipolar mode safely and productively.

Ask us for more information about the Avante Citadel 300's optional safety timeout feature, argon beam coagulation, smoke evacuator, and suction irrigation module.

Key Features:

  • Stable, 300-watt power supply over a wide range of tissue with innovative tissue feedback technology.
  • Patient return electrode monitoring for increased safety during every procedure.
  • Navigate 30 cut and coag settings with the easily-programmable interface for quick and simple setup.
  • Safety-diagnostic protocols help to ensure all parts and accessories are functioning properly.
  • Spray coagulation function provides homogenous, efficient coagulation over a large area.
  • Monopolar and bipolar capable with the appropriate accessories.
  • Audio feedback alerts operator to the completion of bipolar coag.
  • Automatic tissue sensing starts and stops bipolar mode without foot switch activation.
  • Pulse Cut: Tissue feedback, pulse interval controlled pulse cut for polypectomy and papillotomy.
  • Independent control for two simultaneous coagulation outputs.
  • Durable, water-proof foot pedals.
  • Optional — Remote power settings allow clinicians to adjust mode and power from the sterile area.
  • Optional — Timeout function automatically stops the HF output in the event of unintended activation.
  • Optional — Argon beam coagulation, ultrasonic aspirator, smoke evacuator, suction irrigation module.

    Year Manufacturer's Warranty

    Avante Medical Surgical warranties its equipment to be free of defects in materials and workmanship under normal use and with appropriate maintenance. Length of warranty varies from product to product, so please confirm with your Avante Medical Surgical representative for specific warranty coverage. For plastics, rubber, or other expendable items, we warrant only that such parts will be free of defects in materials and workmanship at the time of purchase.

    DIMENSIONS:

    • Length: 17.7 in (45 cm)
    • Width: 14 in (35.5 cm)
    • Height: 4.5 in (11.5)
    • Weight: 16.6 lbs (7.5 kg)

    POWER:

    • Operating Voltage: 180-265 V AC
    • Max Power input: 1000 VA
    • Fuse: 4 A
    • UPS Backup: 1.5 KVA

    MONOPOLAR AUTOCUT:

    • Pure Sine wave 390 kHz
    • Sp Cut: Programmable Pulse or continues output, 300 W at 300 Ω, CF 1.5
    • Pure: Continues output, 300 W at 300 Ω, CF 1.5
    • Blend: Bursts repeating at 29 kHz 55% ON cycle, 200 W at 300 Ω, CF 2.5

    BIPOLAR:

    • Pure Sine wave 390 kHz
    • Micro: Lower output voltage, 70 W at 100 Ω, CF 1.5
    • Standard: Medium output voltage, 70 W at 100 Ω, CF 1.5
    • Macro: Higher output voltage, 70 W at 100 Ω, CF 1.5

    MONOPOLAR COAG:

    • Damped Sine wave 460 kHz
    • Soft: Repetition Frequency 62 kHz, 120 W at 500 Ω, CF 5.0
    • Fulgurate LCF: Repetition Frequency 42 kHz, 120 W at 500 Ω, CF 6.2
    • Fulgurate HCF: Repetition Frequency 34 kHz, 120 W at 500 Ω, CF 7.0
    • Spray: Randomized Repetition Frequency 34 kHz < f < 50 kHz, 120 W at 500 Ω, CF 8.0

    LEAKAGE CURRENTS:

    • RF leakage current
    • Monopolar: < 150 mA rms
    • Bipolar: < 60 mA rms
    • Low Frequency leakage currents
    • Normal polarity, intact ground: < 10 μA
    • Normal polarity, ground open: < 50 μA

    FEEDBACK SYSTEM:

    • 3 Microprocessor Controlled 6SENSE Technology with sampling rate above 4000 sense/second
    • Maximum output power deviation < 15% or 5 watts, whichever is greater at any setting with PER-98

    PREM SYSTEM:

    • Measuring Frequency: 85 kHz ± 10 kHz
    • Measuring current: < 10 μA
    • Acceptable Resistance Range
    • Dual Area PREM Patient Return Electrode: 10-135 Ω
    • Single Area Patient Return Electrode: < 10 Ω
