TK Products Single Panels and Door Panels

$262.95 $385.00

Shopify secure badge

TK Products Pro-Series Kennel Side, End and Door Panels

TK Kennels is the industry leader for the durability of use for indoor/outdoor dog kennels.  Their manufacturing process is unmatched in the industry giving you a quality product that will also for years to come.  TK Products is so confident in their product that they offer a 5-Year Manufacturer Warranty, the longest in the industry Other kennels will claim to be of the same quality but few measures up.  Read below for all the details.

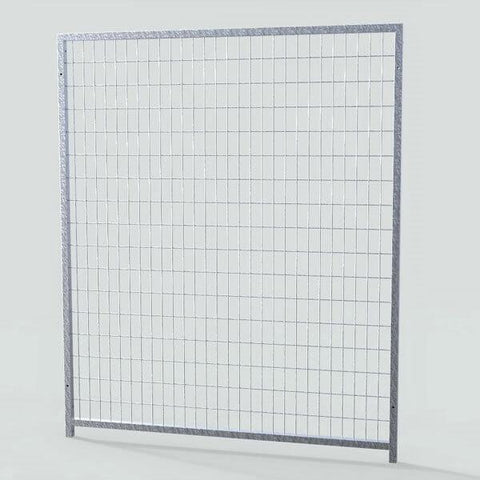

Side Panels

Side panels are raised off the ground with a 2” leg for easy spray out cleaning and also have a plastic leg insert to help with wear and improve corrosion resistance. These panels support end and door panels.  They are made using 1 ¼” square frame tubing holding 6 gauge 2x4 welded wire mesh.

Door Panels

Door panels included latch and are 70" tall and have a 2-foot door which swings in-or-out (30" door on 10'W model). The door panel is also reversible offering a right or left-handed installation.  The included spring-loaded door latch is solid stainless steel with an internal stainless spring that holds the latch shut and prevents your pet from opening the door. In addition to having a handle on both sides for ease of use, the latch is also lockable for your pet’s safety.

Door Panels 3', 4' & 5' have 24" Door

Door Panel 10' has 30" Door

End Panels

End Panels do NOT have legs, they are supported by 2 side panels. These end panels are 1 ¼” square frame tubing holding 6 gauge 2x4 welded wire mesh.

 *Shipping Note: a minimum order of $1,900 is needed to receive free shipping, otherwise a $189 flat freight fee is charged.

Why Buy a TK Kennel

Superior Design

All Pro-Series Kennels are built using 1 ¼” square tubing frame with welded mitered corners giving it superior strength and appearance. The top mitered corner design also eliminates all dirt and debris from entering the top of the frame and corroding it from the inside out. Most of the other major brand kennels have frames that are wide open on top.

TK Products kennels stainless steel assembly

The square tube kennel frames provide a more effective means to secure two panels together. The square frame kennels are held together using stainless steel bolt assemblies that are designed to wrap around each frame for increased strength (see pictures above), unlike round tube framed kennels that use a round clamp system which often becomes loose and can rotate. Our bolt assembly includes all stainless steel bolts and vibration proof stainless steel ny-lock nuts. This design was chosen specifically based on years of experience with fail brackets.

TK products kennel square tubing 2x4 welded wire mesh

Inside the frame is  6 gauge 2x4 welded wire mesh. The inside of the frame is pre-drilled around the entire inner perimeter; then each end of the wire mesh is inserted into the pre-drilled frame and welded around every wire. We have found this to be the most secure way to fasten the wire mesh to the frame while also eliminating exposed jagged or sharp edges that could injure your animal. This design also eliminates rattling of the fence like other chain link versions giving you the quietest kennel possible. Most other brands just weld the wire mesh to the surface of the frame every six to twelve inches which means some of the wire mesh ends can be bent out and injure your pet.

TK kennels are raised 2" off the ground with a leg for easy spray out cleaning and also come plastic leg inserts to help reduce wear and improve the corrosion resistance.

Optionally, we off a Stainless Steel foot that replaces the plastic leg insert and allows the side panels to be adjustable from 2” – 3” – 4” above grade for easy cleaning and sloped concrete installations. The large for is 3 ½” square and allows you to bolt the kennels to the concrete or works very well for placing the kennels on soft surfaces like grass or pea stone.

TK Products large base for kennel

Door Panels

Each door panel has a 2-foot door which swings in-or-out. The door panel is also reversible offering a right or left-handed installation. The door hinge design allows for the door to be removed by lifting it straight up but only if the door is opened to at least 90 degrees, this is a handy feature for cleaning. These unique features truly make the TK Pro-Series a versatile kennel system.

TK products kennels door assembly easily open in or out

The Door Latch is spring-loaded and made of solid stainless steel with an internal stainless spring that holds the latch shut and prevents your dog from opening the door. Thre is a handle on both sides of the kennel for ease of use, and the latch is lockable for your pet’s safety. The handle is easily used one-handed to make feeding time a breeze.

Optional Isolation Pannels

TK Products Kennels Isolation pannels for multi kennels

TK Isolation Panels are great to keep animals from interacting too much. Made of a non-toxic black textured HDPE (composite). The HDPE is black all the way through so it will show fewer signs of wear or scratching as compared to steel or galvanized panels. It is impervious to cleaning chemicals and will not corrode or rust even if damaged. All our isolation panels are 48” tall and fastened to our wire mesh side panels using stainless steel brackets and screws. This means the panels can be added, moved or removed at any time to increase ventilation or install where needed.

Optional top Panels

TK products kennel tops

We also offer optional top mesh panels for our more popular kennels. These top panels sit flush inside the kennel on six mounting tabs and held in place using the stainless steel self-drilling mounting screws that come with each panel.

TK Products Comprehensive 5 Year Warranty

1. For five (5) years from the date of original purchase, TK Products LLC, warrants to the purchaser of this kennel that,
should it prove structurally defective by reason of improper workmanship and/or material, TK Products LLC, will repair or replace, at its option, any defective part of the kennel, customer is responsible for all shipping. Replacement parts are warranted for the remainder of the original period.
2. THIS WARRANTY DOES NOT COVER damage to the kennel caused by any animal, any physical abuse to or misuse of the kennel, any damage caused by the original purchaser or any third party, or any defects arising or discovered more than five (5) years from the original retail purchase date.

Shipping

TK Product Kennels Ship from Michigan via Freight Carrier

  • TK Products can take 3-4 weeks or more to manufacture, please contact us if you need a specific timeframe for your order.
  • A minimum order of $1,900 is needed to receive free shipping. Orders below this amount will be charged a $189 flat freight fee.
  • Transit times can vary by location and time of year, freight carrier do not guarantee a delivery date, please allow 5-15 days for transit

Freight Shipping

Freight shipping is used when items are over 145 lbs or very large in size.  Our standard freight shipping will arrive to you in a tractor-trailer/18-wheeler. Once the freight driver is in your area, they will contact you directly to arrange for a delivery time.

Liftgate Service:

Because of the large size of these kennels, a liftgate is not an option.  The kennel panels will be unpacked on the truck and lifted off one by one.  It is advised to have 2-3 people to help you to receive the shipment.

Receiving Your Shipment

Your order will arrive on a pallet delivered by a commercial LTL carrier. The trucks are usually semi-trucks,  tractor-trailers/full size 18 wheelers. If you a residential delivery, we recommend having some help onsite when your shipment arrives. The freight company will call you a day or so before they deliver to schedule a time to deliver. The pallets of kennels can be unwrapped on the truck and each kennel panel can then be easily lifted off the truck.
