Avante Pannomed O.P. Veterinary Surgical Table

$8,565.00 $9,849.75

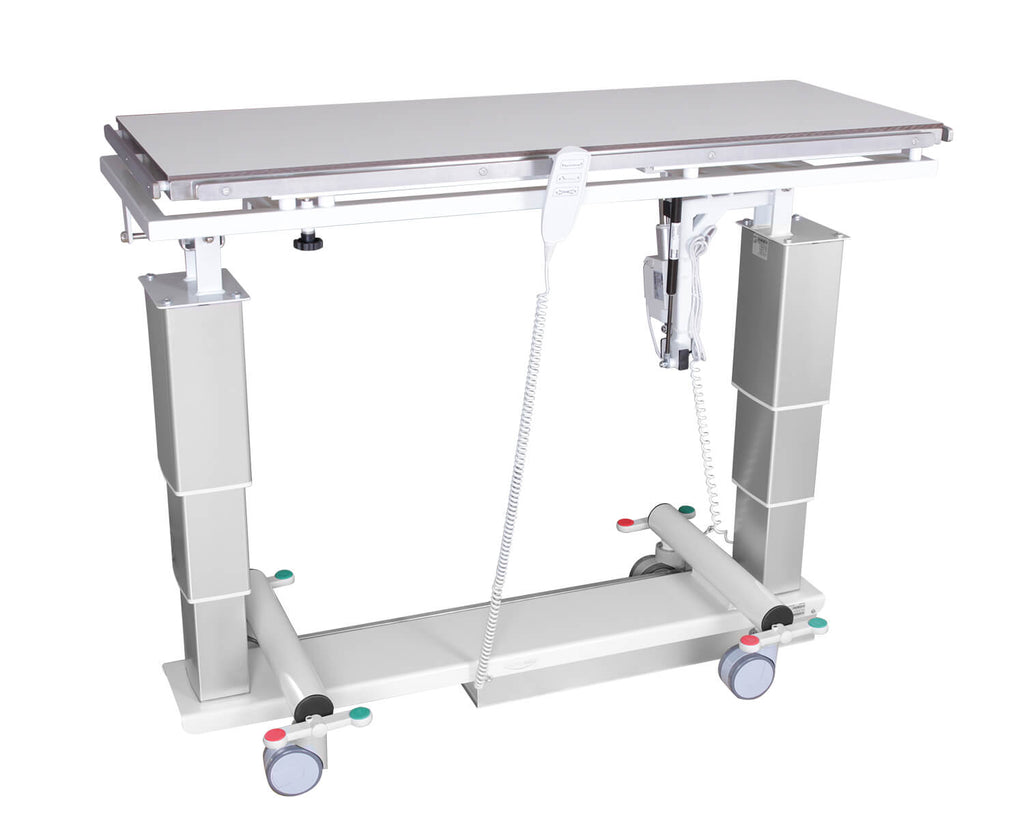

Avante Pannomed O.P. Veterinary Surgical Table

A high-end specialty veterinary table made for advanced orthopedic surgery and opthalmology.

Many emergency and critical care facilities, colleges, and research facilities use the Pannomed OP Veterinary Surgical Table. Doctors can work in a comfortable standing or sitting position thanks to the remote-controlled height adjustment feature of the Pannomed OP system, which adjusts from 33.5" to 45". This sturdy surgical table is ideal for veterinary surgery, particularly for laparoscopy. It has power Trendelenburg and Reverse Trend to 15 positions, power lateral tilt to a distinctive 40 degrees, and an X-Ray translucent top. Procedures involving ophthalmology and neurosurgery are greatly benefited by an exclusive sliding top and optional arm rests.

Key Features:

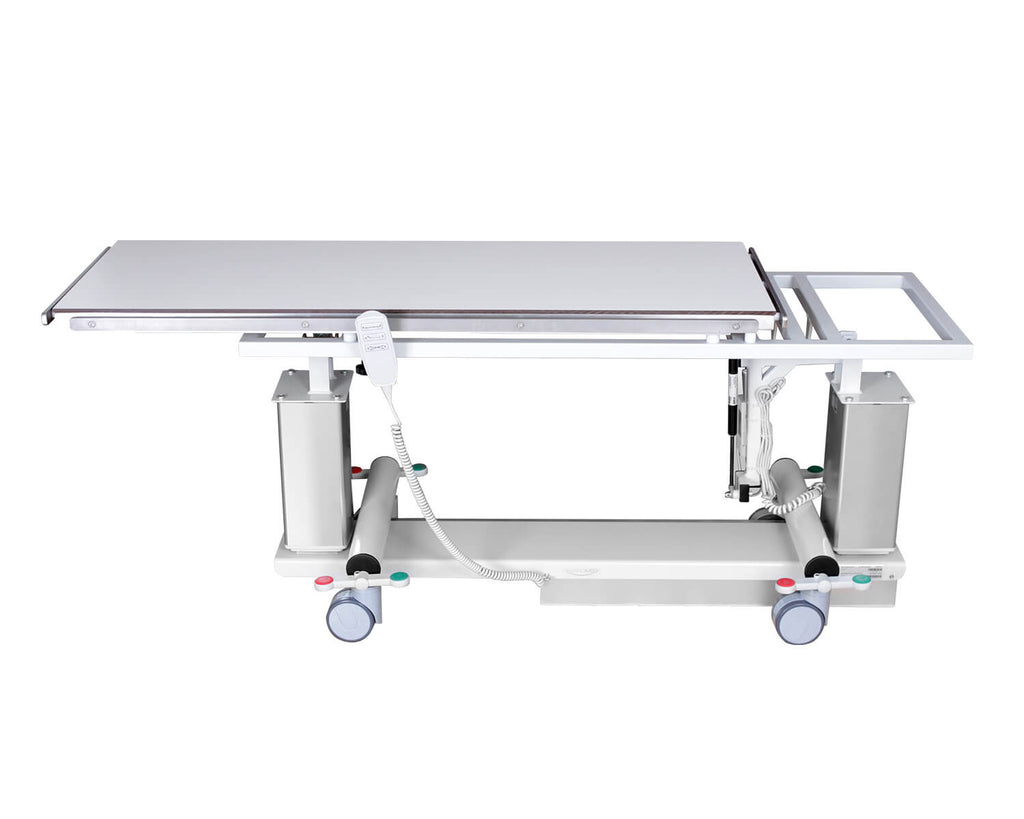

  • Sliding top for ophthalmic or head and neck surgical procedures
  • X-Ray translucent Sliding top for use with C-ARM or optional x-ray cassette drawer
  • Designed for ophthalmology, laparoscopy, and neurosurgery related procedures
  • Perfect for complicated and difficult procedures
  • Suitable for small animal arthroscopy
  • Adjustable for sitting or standing operations
  • All mechanisms are remote controlled with a joystick control box
  • Electrically remote controlled height adjustable

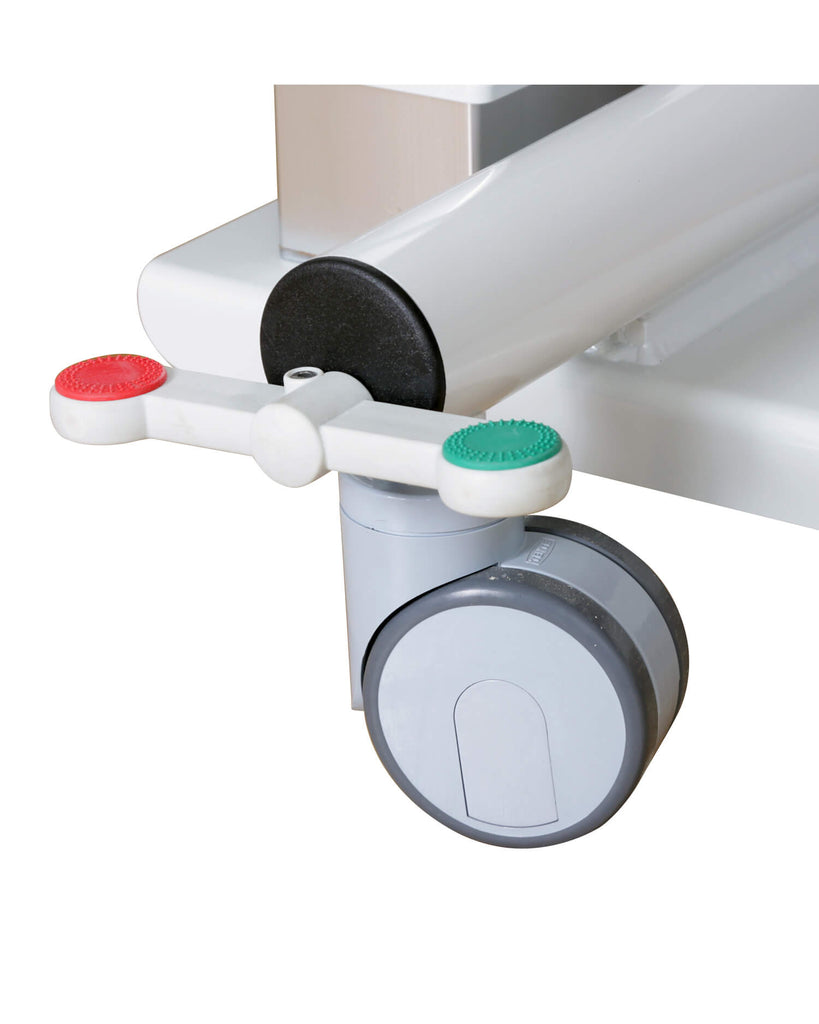

  • Movable on castors

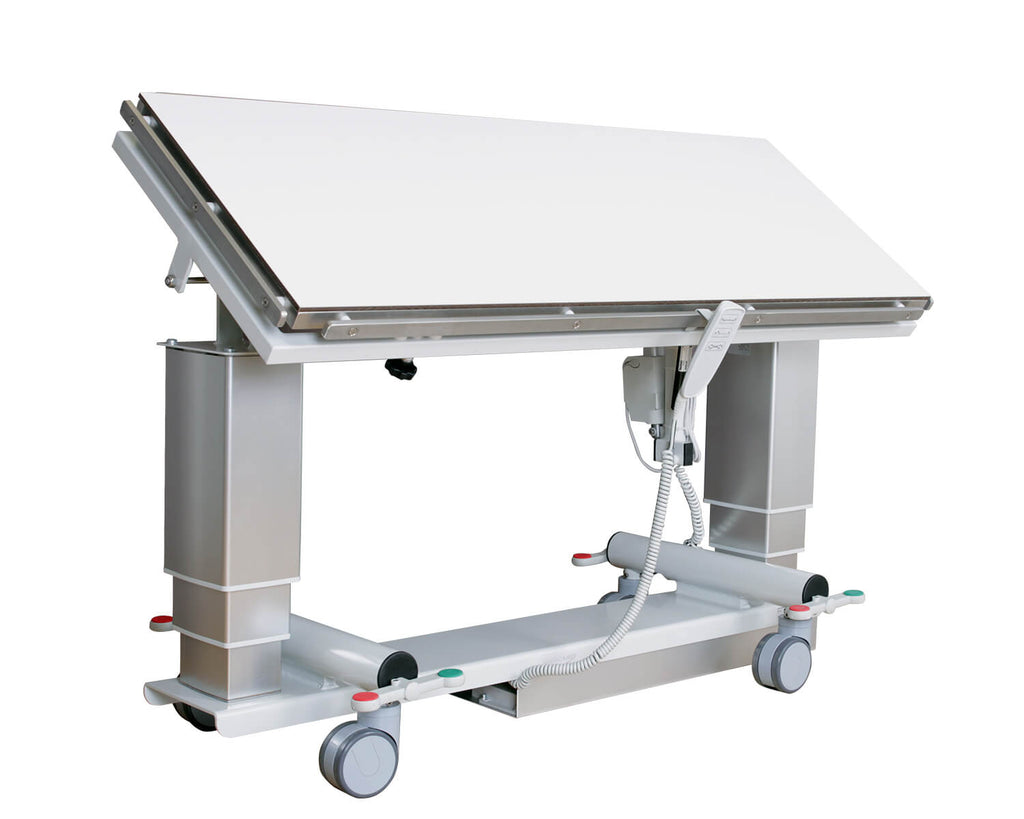

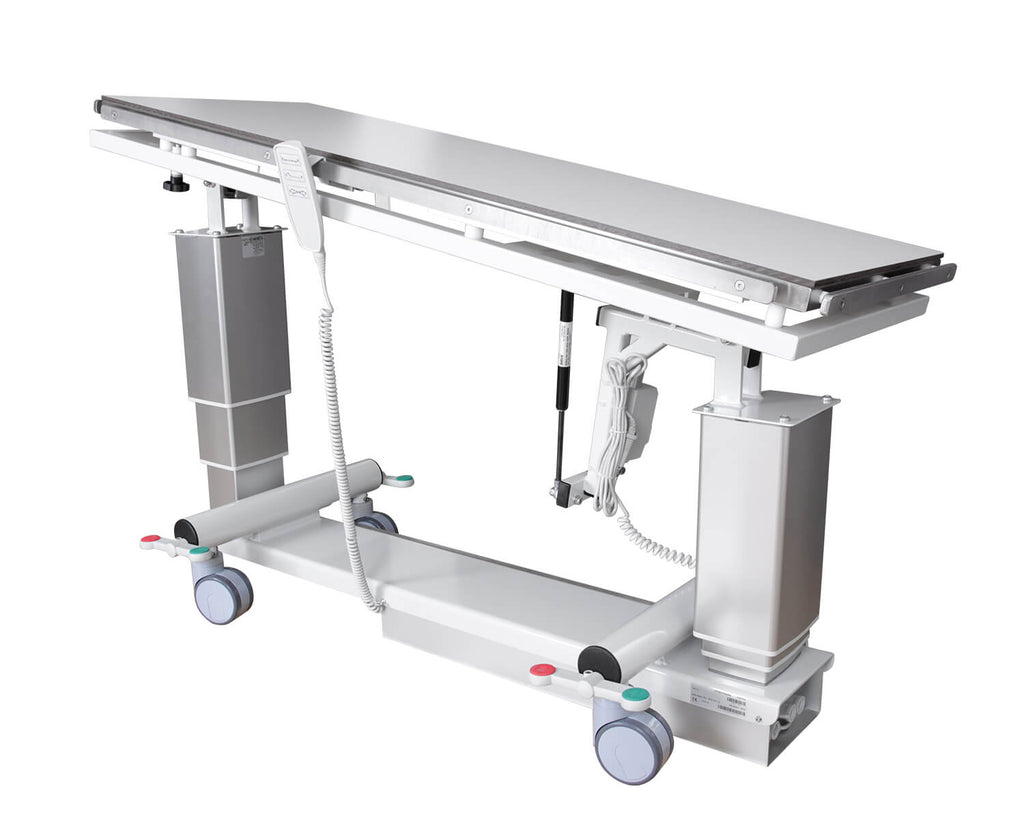

  • Longitudinal 15 degree electric tilting
  • Power Lateral tilting
  • 250 lb load capacity
  • 110 AC outlet compatible

Basic Equipment:

  • OP-System with Castors
  • Sliding and X-Ray Translucent Top
  • OP-Rails (set of 4)
  • 4 Piece Quick-Release Tie-Down Cleats
  • Hand Remote Control
  • Optional: Can Add a Joystick and Joystick Module

Documents and Resources:

**To download click below**

Pannomed OP Veterinary Surgical Table

Pannomed OP Accessory Sheet

    Year Manufacturer's Warranty

    Avante Medical Surgical warranties its equipment to be free of defects in materials and workmanship under normal use and with appropriate maintenance. Length of warranty varies from product to product, so please confirm with your Avante Medical Surgical representative for specific warranty coverage. For plastics, rubber, or other expendable items, we warrant only that such parts will be free of defects in materials and workmanship at the time of purchase.

     Electric Height Adjustment 33.5 to 45 inches (84 to 114 cm)
    Longitudinal Electric Tilting 15°
    Lateral Positions Up 40° electric tilting
    Clearance end measurement 2.5 inches from floor
    Clearance measurement 7.25 inches middle bar/support to floor
    Clearance measurement 18.5 inches underneath table top down to middle bar/support
    Load Capacity 264 lbs
    X-Ray Translucent Top Dimensions 51" L x 19.5" W (130 x 50 cm)
    Power 110 AC outlet compatible
    Overall Dimensions 22" W x 53" L

    Avante ships from Kentucky via Freight Carrier

    • Most items can take several weeks or more to manufacture, please contact us if you need a specific timeframe for your order.
    • Transit times can vary by location and time of year, freight carrier do not guarantee a delivery date, please allow 5-15 days for transit

    Freight Shipping

    Freight shipping is used when items are over 145 lbs or very large in size.  Our standard freight shipping will arrive to you in a tractor-trailer/18-wheeler. Once the freight driver is in your area, they will contact you directly to arrange for a delivery time.

    Receiving Your Shipment

    Your order will arrive on a pallet delivered by a commercial LTL carrier. The trucks are usually semi-trucks,  tractor-trailers/full-size 18-wheelers.  The freight company will call you a day or so before they deliver to schedule a time to deliver. You will need to have help ready when your shipment arrives as the freight driver will not unload for you.  If you do not have a forklift, the pallets of kennels can be unwrapped on the truck and each kennel panel can then be easily lifted off the truck.

    Liftgate Service:

    Because of the large size of these kennels, a liftgate is not an option.  The kennel panels will be unpacked on the truck and lifted off one by one.  It is advised to have the manpower needed to unload the shipment yourself.

      *Note - delivery agents are not able to assist once the freight has been dropped off.  Please ensure that you have enough help or equipment to safely move your new item into place at your location, as the driver cannot assist in this.
